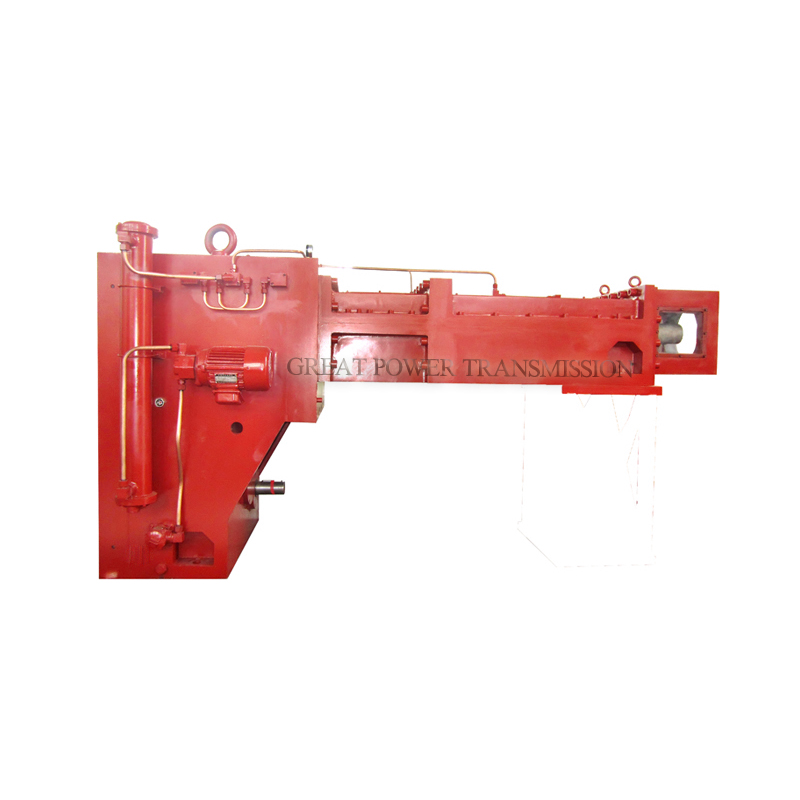

YPS Series Inverted Parallel Twin Ntsia Hlau Gearbox

Lus piav qhia luv luv:

YPS series gearbox yog tus qauv tsav tsheb tsim thiab tsim rau lub txee - tig thaum uas tig mus ntxaib ntsia hlau extruder. Nws cov iav yog ua los ntawm cov hlau tsis tshua muaj carbon hlau los ntawm cov pa roj carbon peretrating, quench thiab cov hniav sib tsoo kom ncav cuag lub zog siab thiab precision.

Product Detail

Khoom cim npe

Cov ntaub ntawv yooj yim

Input zog 60KW-150KW TSI
Ntsia Hlau Dia 90-130 hli
Central nrug ntawm cov zis ncej 76-110 hli
Output torque ntawm ib tug ncej 6338N · m ~ 15838N · m
Input ceev 1500 RPM
Cov zis ceev Raws li qhov ratio
Cov khoom siv iav 20CrMnTi qis carbon alloy steel
Cov khoom siv tsev Cam khwb cia hlau
Gear processing CNC sib tsoo
Hom ntawm bearings C&U, NXZ, ZHJ, ZWZ, LYC, HRB, NSK, FAG, thiab lwm yam
Hom roj foob FAG, NAK, thiab lwm yam
Nto hardness ntawm iav HRC54 ~ 62
Cov iav raug Qib 6
Kev kho cua sov Carburizing, quenching
Cov zis hom Spline ncej tso zis
Hom tswv yim Khoom Ncej

Product Description
YPS series gearbox yog tus qauv tsav tsheb tsim thiab tsim rau lub txee - tig thaum uas tig mus ntxaib ntsia hlau extruder. Nws cov iav yog ua los ntawm cov hlau tsis tshua muaj carbon hlau los ntawm cov pa roj carbon peretrating, quench thiab cov hniav sib tsoo kom ncav cuag lub zog siab thiab precision. Cov zis ncej yog finely ua los ntawm tshwj xeeb alloy steel kom haum raws li qhov yuav tsum tau ntawm loj tso zis torque. Cov pab pawg thrust bearing yog ib qho kev sib xyaw tsim uas tau txais kev txhawb nqa siab tshaj tandem thrust cylindrical roller bearing thiab tag nrho cov cylindrical roller bearings uas muaj peev xwm loj. Lub lubrication style adopts roj immersion thiab tshuaj tsuag lubrication thiab nws tseem tuaj yeem nruab nrog cov yeeb nkab style txias system raws li qhov sib txawv ntawm lub tshuab. Lub tshuab tag nrho muaj qhov zoo - qhov sib npaug, cov qauv ua ntej, kev ua haujlwm zoo tshaj plaws thiab kev ua haujlwm du. Nws yog ib qho kev xaiv zoo tshaj plaws ntawm cov txee - rotating parallel ntxaib ntsia hlau extruder gearbox.
Khoom Feature
1. Zoo - sib npaug zoo li.
2. Cov qauv Advanced.
3. Superior bearing kev ua tau zoo.
4. Kev ua haujlwm du.

Technical Parameter

No Qauv Central Distance ntawm Output Ncej (mm) Ntsia Hlau Dia (mm) Input Ceev (r/min) Cov zis ceev (r/min) Input zog (KW)
1 SIB 76/90 76 90 1500 45.2 60
2 SIB 90/107 90 107 1500 45.3 80
3 TSI 92.5/114 92.5 114 1500 46.7 100
4 SIB 95/116 95 116 1500 45 100
5 TSI 104/120 104 120 1500 45.09 110
6 TSI 110/130 110 130 1500 45.2 150

Daim ntawv thov
YPS series gearboxyog dav siv nyob rau hauv lub txee - tig thaum uas tig mus ntxaib ntsia hlau extruder.

FAQ

Q: Yuav ua li cas xaiv a gearbox thiabiav ceev reducer?

A: Koj tuaj yeem xa mus rau peb cov ntawv teev npe los xaiv cov khoom lag luam tshwj xeeb lossis peb tuaj yeem pom zoo rau cov qauv thiab cov lus qhia tshwj xeeb tom qab koj muab lub zog xav tau, tso zis nrawm thiab nrawm piv, thiab lwm yam.

Q: Peb tuaj yeem lav tau li caskhoomzoo?
A: Peb muaj cov txheej txheem tsim khoom nruj heev thiab kuaj txhua qhov ua ntej xa khoom.Peb lub thawv iav reducer tseem yuav ua tiav qhov kev ua haujlwm sib raug zoo tom qab kev teeb tsa, thiab muab cov ntawv xeem. Peb cov khoom ntim yog nyob rau hauv cov rooj ntoo tshwj xeeb rau kev xa tawm kom ntseeg tau tias kev thauj mus los zoo.
Q: Vim li cas kuv thiaj xaiv koj lub tuam txhab?
A: a) Peb yog ib qho ntawm cov tuam txhab ua lag luam thiab cov khoom xa tawm ntawm cov khoom siv sib kis.
b) Peb lub tuam txhab tau tsim cov khoom siv iav rau txog 20 xyoo ntxiv nrog kev paub nplua nujthiab advanced technology.
c) Peb tuaj yeem muab qhov zoo tshaj plaws thiab kev pabcuam zoo tshaj plaws nrog cov nqi sib tw rau cov khoom.

Q: yog dab tsikoj MOQ thiabcov ntsiab lus ntawmkev them nyiaj?

A: MOQ yog ib chav tsev.T / T thiab L / C tau txais, thiab lwm cov nqe lus kuj tuaj yeem sib tham.

Q: Koj puas tuaj yeem muab cov ntaub ntawv cuam tshuam rau cov khoom?

A:Yog lawm, peb tuaj yeem muab cov ntaub ntawv feem ntau suav nrog tus neeg teb xov tooj phau ntawv qhia, daim ntawv tshaj tawm kev soj ntsuam zoo, kev pov hwm kev thauj mus los, daim ntawv pov thawj ntawm keeb kwm, daim ntawv teev npe, daim ntawv them nyiaj ua lag luam, daim nqi thauj khoom, thiab lwm yam.
